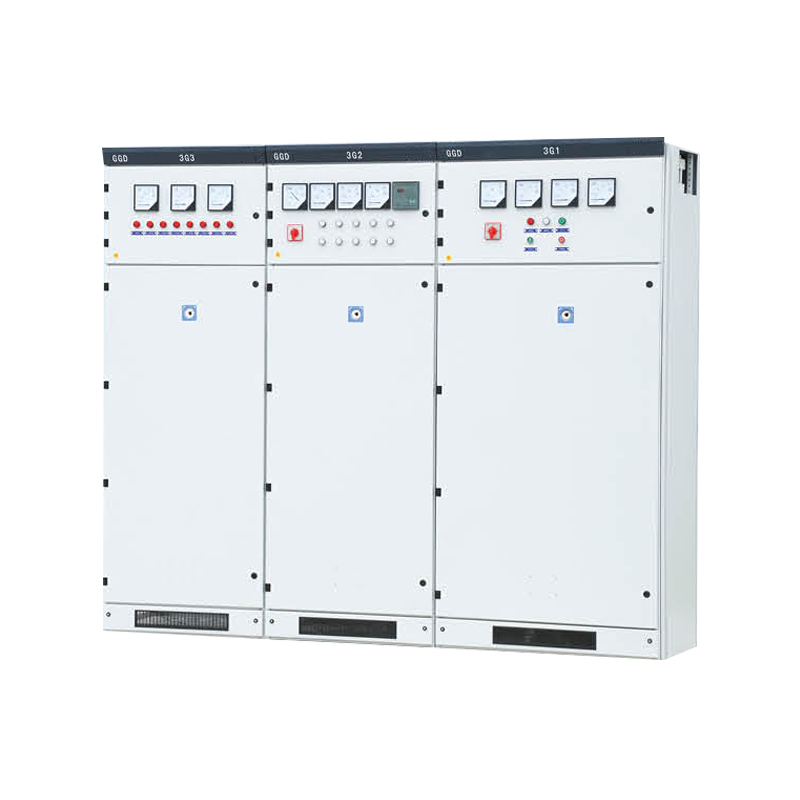

AC Low Voltage Distribution Cabinet: The Cabinet That Splits the Power and Protects the Circuits

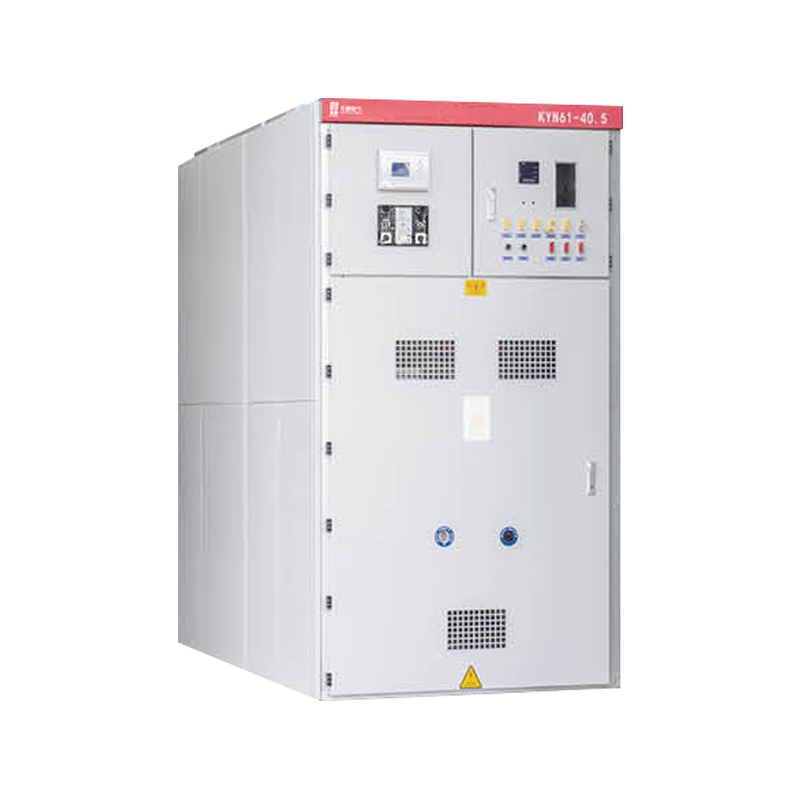

Switchgear controls and protects the electrical circuit. Most switchgear is fixed in place. A removable AC metal enclosed switchgear is different. The circuit breaker, the heart of the switchgear, sits on a truck or a cassette that rolls out of the enclosure. The operator pulls the breaker out, services it, replaces it, and rolls it back in. No disconnecting the whole panel. No shutting down the entire system. For industrial plants, data centers, and utilities where downtime is measured in money, the removable switchgear is the one that can be fixed fast. The Enclosure That Holds the Voltage The enclosure is metal, usually steel, with compartments for the busbar, the breaker, and the cable. The metal enclosure contains the arc and protects the operator. A removable AC metal enclosed switchgear with a properly built enclosure keeps the live parts behind the metal and the operator in front of it. The compartments are separated. The busbar compartment, the breaker compartment, the cable compartment. Each one is isolated from the others. A removable AC metal enclosed switchgear with proper compartmentation prevents a fault in one compartment from spreading to the next. The doors are interlocked. The breaker compartment door cannot be opened while the breaker is in service. The cable compartment door cannot be opened while the circuit is live. A removable AC metal enclosed switchgear with proper interlocks keeps the operator from making the wrong move. The Removable Breaker and the Racking The breaker sits on a truck or a cassette. The operator pulls the breaker out of the service position to the test position, then out of the enclosure entirely. A removable AC metal enclosed switchgear with a properly designed racking mechanism moves the breaker in and out without forcing. The racking mechanism is the critical part. The breaker has to align with the busbar contacts as it racks in. A misaligned breaker damages the contacts. A removable AC metal enclosed switchgear with a guided racking mechanism aligns the breaker every time. The test position is the middle stop. The breaker is disconnected from the busbar but still connected to the control circuit. The operator can test the breaker operation without energizing the main circuit. A removable AC metal enclosed switchgear with a proper test position makes the testing safe. The Busbar and the Cable The busbar carries the current through the switchgear. The busbar is copper or aluminum, sized to the rated current. A removable AC metal enclosed switchgear with a properly sized busbar handles the full load without overheating. The cable compartment holds the incoming and outgoing cables. The cables terminate on lugs or connection pads. A removable AC metal enclosed switchgear with a properly sized cable compartment gives the installer room to work. The current transformers and the protection relays monitor the circuit. They trip the breaker on a fault. A removable AC metal enclosed switchgear with the protection integrated and tested protects the circuit. Here is what a removable AC metal enclosed switchgear needs to deliver: Metal enclosure with separated compartments Removable breaker on a racking mechanism Guided racking for contact alignment Test position for breaker testing Interlocked doors for operator safety Busbar and cable compartments sized for the load The Plant and the Data Center The industrial plant uses the removable switchgear for the motor control and the distribution. A breaker that fails is pulled out and replaced in minutes, not hours. A removable AC metal enclosed switchgear on the plant floor less the downtime. The data center uses the switchgear for the power distribution to the server racks. The power must stay on. A removable AC metal enclosed switchgear in the data center means a breaker swap without a power drop. The utility uses the switchgear in the substation. The breaker is the protection device. A removable AC metal enclosed switchgear in the substation lets the utility test and replace the breakers without a long outage. The Racking That Jams The racking mechanism jams because the breaker was not aligned. A guided racking mechanism prevents it. The interlocks fail and the door opens while the breaker is live. Proper interlocks prevent it. The busbar overheats because it was undersized. A properly sized busbar handles the load. A removable AC metal enclosed switchgear is the switchgear that can be fixed fast. The breaker rolls out. The new one rolls in. The power comes back. Choose a unit with a guided racking mechanism, proper interlocks, and a test position. The downtime will be minutes, not hours. That is the point. That is what the removable switchgear is for.
